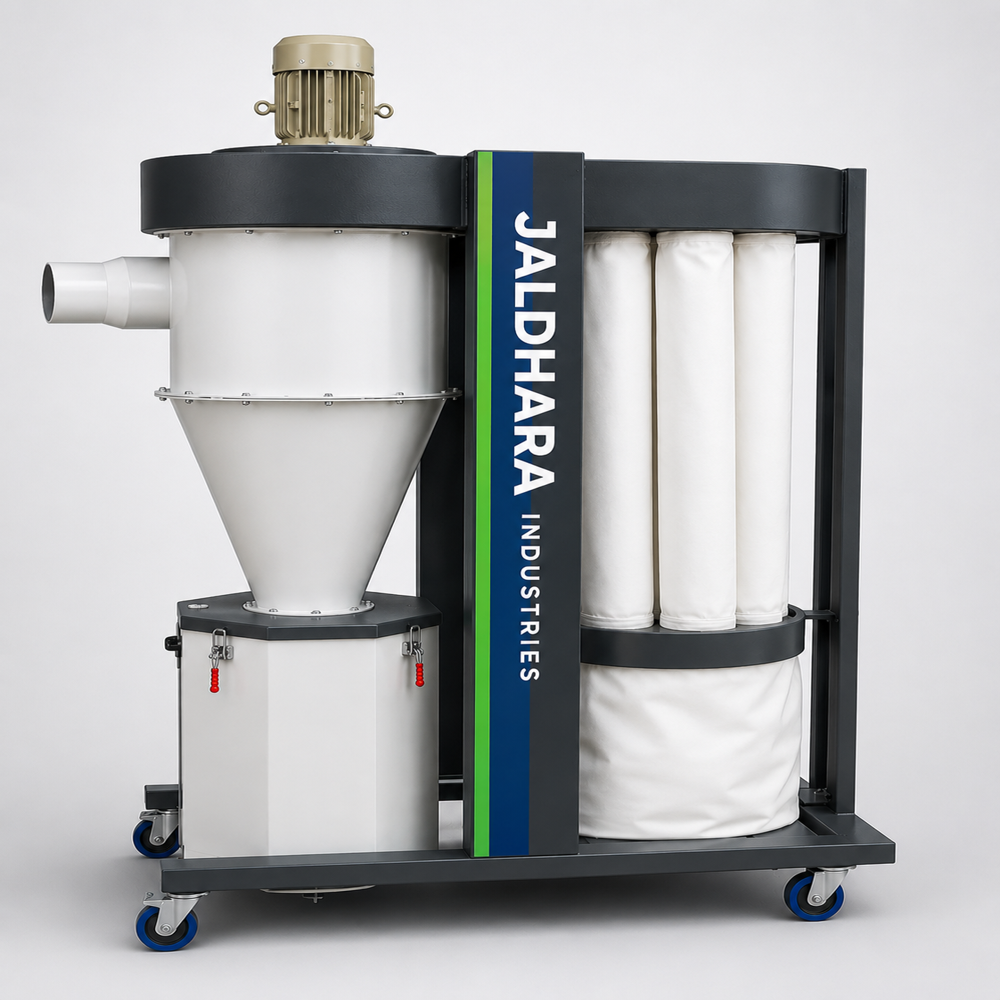

Cyclone Dust Collector

Name: Industrial Cyclone Dust Collector
Brand: JALDHARA INDUSTRIES
Price: 55000.0 INR
Availability: InStock

Price 55000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

Cyclone Dust Collector Specification

Air Flow
1000-20000 m3/h m3/hr

Scrubber Type
Cyclone

Efficiency
Up to 99%

Measurement
Particulate Matter

Orientation
Vertical

Power Source
Electric

Usage & Applications
Industrial Dust Collection

Temperature
Up to 80 C Celsius (oC)

Automation Grade
Semi-automatic

Instruments Type
Dust Collector

Product Type
INDUSTRIAL

Material
M S

Cooling System
Air Cooling

Noise Level
80 db

Processing Time
Continuous Days

Capacity
1000 m3/hr to 20000 m3/hr m3/hr

Voltage
415 Volt (v)

Weight
Varies as per design Liter (Ltr)

Dimension (L*W*H)
Customizable Meter (m)

Warranty
1 YR

Surface
Powder Coated

Ducting Material
Mild Steel or GI

Particle Size Collection
10 micron and above

Usage Environment
Indoor/Outdoor

Design Standard
IS 4894 or equivalent

Maintenance
Low

Mounting System
Floor Mounted

Fan Type
Centrifugal Blower

Motor Power
3 HP - 15 HP

Body Finish
Anti-corrosive painted

Inlet/Outlet Diameter
Customized

Dust Container Type
Dust Bin/Bag

Cyclone Dust Collector Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ahmedabad

Payment Terms
Cash on Delivery (COD), Paypal, Cash Against Delivery (CAD), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Western Union, Letter of Credit (L/C), Cash Advance (CA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C)

Supply Ability
2 Pieces Per Month

Delivery Time
25 Days

Sample Available
Yes

Packaging Details
box packing

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India

Certifications
msme

About Cyclone Dust Collector

CYCLONE DUST COLLECTOR

A Cyclone Dust Collector is a high-efficiency mechanical dust separation system designed to remove dust, powder, and particulate matter from air or gas streams using centrifugal force. Suitable for woodworking, foundries, grinding, shot blasting, boilers, furnaces, cement, minerals, and process industries.

Features

Heavy-duty welded steel construction
No moving parts inside cyclone body
Low maintenance design
High dust separation efficiency
Suitable for high-temperature applications
Abrasion-resistant construction available
Compact design with small footprint
Continuous dust discharge arrangement
Air Capacity 1,000 to 100,000 CMH

Static Pressure 50 to 500 mmWC

Dust Collection Efficiency 85% to 98%

Dust Particle Size Above 10 Microns

Body Material MS / SS304 / SS316

Cone Angle 10 to 20

Inlet Velocity 15 to 25 m/s

Operating Temperature Ambient to 450C

Dust Discharge Rotary Airlock / Manual Hopper

Surface Finish Industrial Epoxy Paint

Typical Applications
- Wood Dust Collection
- Grinding Dust Collection
- Boiler Ash Collection
- Foundry Dust Extraction
- Shot Blasting Plants
- Cement Industries
- Minerals Processing
- Chemical Industries
- Furnace Fume Collection
- Powder Recovery Systems
Advantages

Low Operating Cost
No Filter Replacement
High Temperature Resistance
Continuous Operation
Rugged Industrial Design
Easy Installation
Long Service Life
